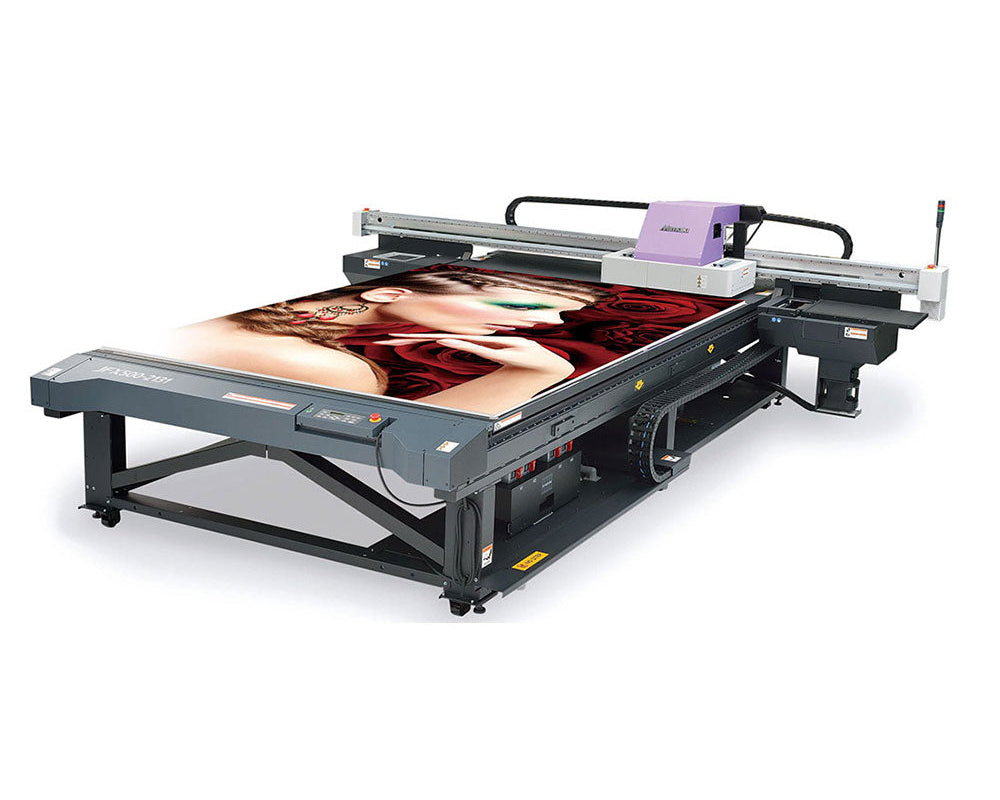

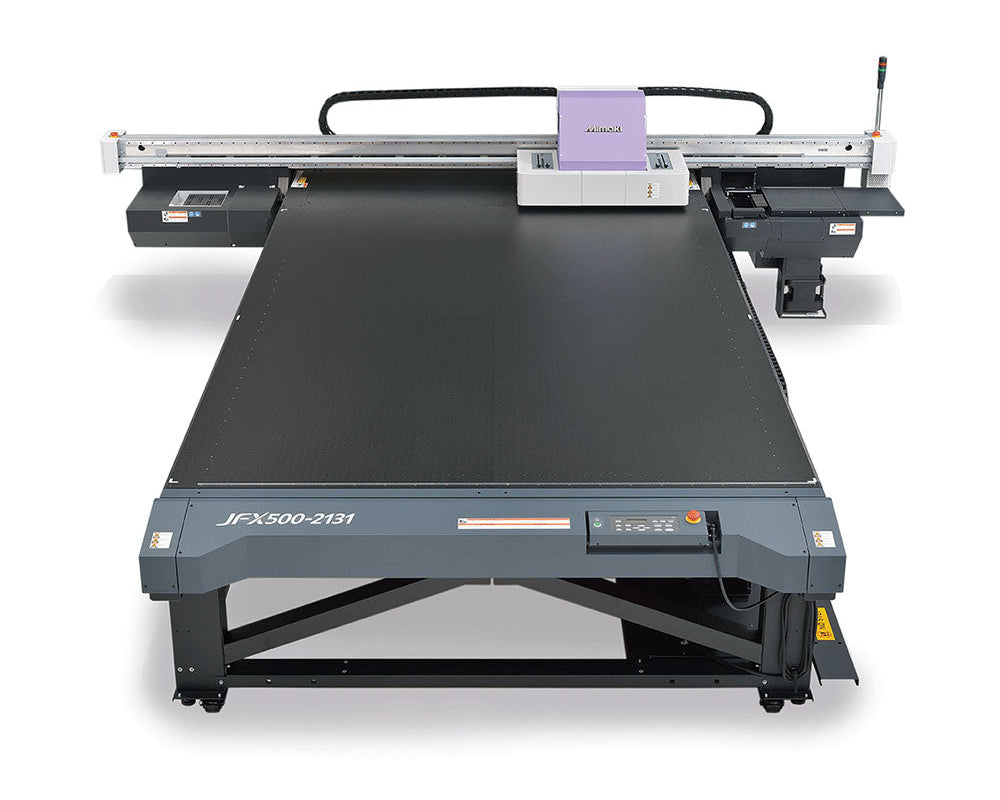

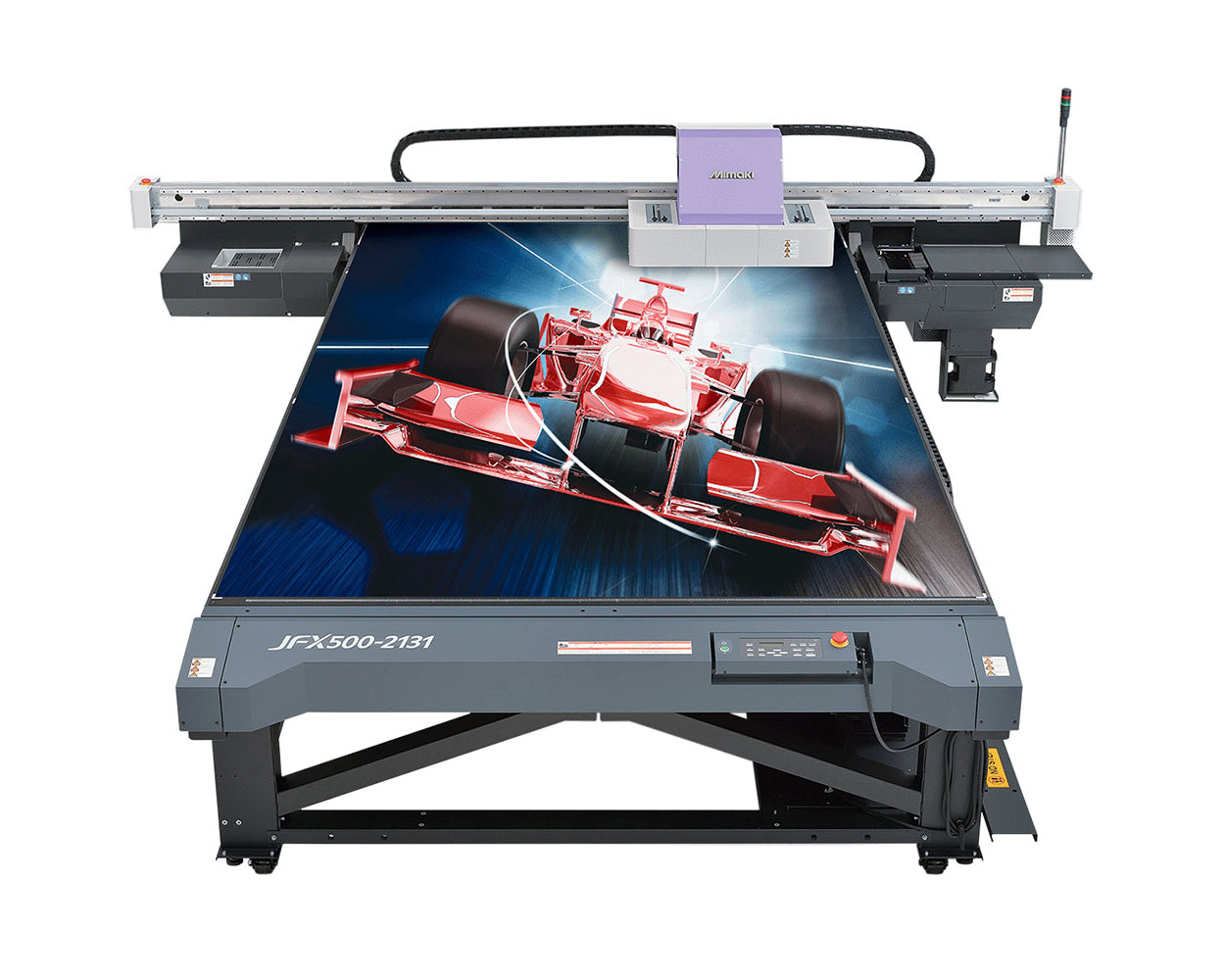

Mimaki JFX500-2131 Flatbed Printer


Model Options

1) JFX500-2131

Max. print area - 2.1m x 3.1m

The new JFX500-2131 from Mimaki smashes all established records for a grand format flatbed UV LED printer, with production speeds of up to 60sqm/h, delivering unbelievably high quality, right down to 2 point text on a massive 210 x 310 cm print area.


  • Amazing print speeds up to 60sqm/h with CMYK and 45sqm/h with white ink printing
  • Maximum print size of 2.1 x 3.1 m
  • Intelligent Microstepping System (IMS) for accurate prints, even 2pt characters can be legibly printed
  • Variable dot printing with a minimum size of 7 picolitre
  • Mimaki Advance Pass System reduces bandings
  • Mimaki Circulation Technology prevents pigment sedimentation of white ink
  • Reliable nozzle recovery function
  • Vacuum unit and high performance Rasterlink RIP software included as standard



    Print head On-demand piezo head (6 print heads with 3 staggered configurations)
    Maximum print area 2100 x 3100 mm
    Printing resolutions 300 dpi, 600 dpi, 900 dpi, 1200 dpi
    Ink type LH-100 Hard UV Ink (CMYK + W) | LUS-150 Stretchable UV ink (CMYK + W)
    Ink supply system Supplied by 2L ink station
    Media Size 2100 x 3100 mm (w x d)
    Media thickness Up to 50 mm
    Media weight Up to 50 kg / sqm
    Media set device Air suction by vacuum
    UV device Equipped with UV LED
    Interface USB 2.0
    Power consumption Less than 2.4 kVA
    Dimensions (w x d x h) 4100 mm x 4462 mm x 1490 mm
    Weight 1353 kg
