UV Flatbed Printers

Flatbed Printers are designed to print directly to the substrate / board, removing the need for a carrier or self-adhesive vinyl to be adhered. This immediately reduces media waste and associated costs, introduces the ability to retain the substrate's natural finish (wood grains or metallic surfaces for instance) and finally, expands the variety of materials you can print.

UV ink will adhere to virtually any surface, so long as it's relatively flat. Over the years we're printed to the likes of metal, plastic, wood, acrylic, tile, slate, leather and rubber to name just a few. As these aren't typically certified for printing, it does mean trials are highly recommended as every product can react differently.

Key Specifications

Mimaki UJF3042 MKII e
30 x 42cm Printable Area  |  15.3cm Maximum Thickness  |  1,200dpi Max  |  SIX ink channels

Mimaki UJF6042 MKII e
60 x 42cm Printable Area  |  15.3cm Maximum Thickness  |  1,200dpi Max  |  EIGHT ink channels

Mimaki UJF-7151 PlusII
71 x 51cm Printable Area  |  15.3cm Maximum Thickness  |  1,800dpi Max  |  EIGHT ink channels  |  Integrated Base Table

Mimaki JFX200-1213EX
120 x 130cm Printable Area  |  5.0cm Maximum Thickness  |  1,200dpi Max  |  EIGHT ink channels  |  Integrated Base Table

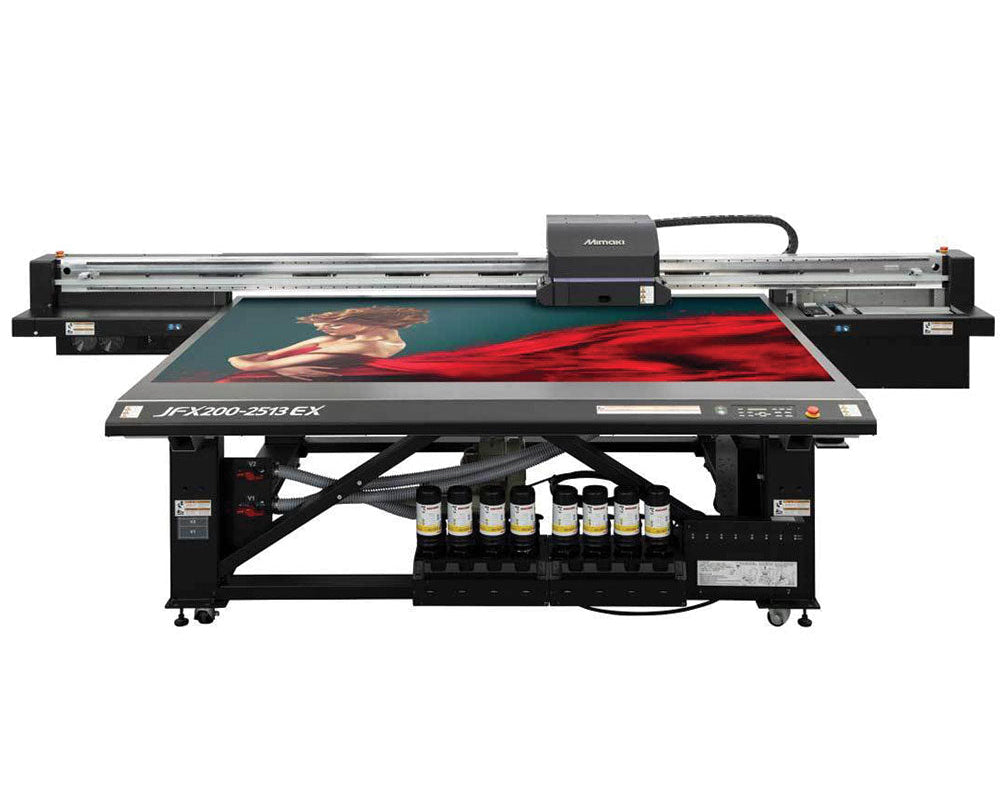

Mimaki JFX200-2513EX
250 x 130cm Printable Area  |  5.0cm Maximum Thickness  |  1,200dpi Max  |  EIGHT ink channels  |  Integrated Base Table

Mimaki JFX500-2131
210 x 310cm Printable Area  |  5.0cm Maximum Thickness  |  1,200dpi Max  |  EIGHT ink channels  |  Integrated Base Table

For more information on UV Flatbed Printers have a look at our article "What can you print with a UV flatbed?" which will give you a deeper dive into the subject.
