Mimaki UJV55-320 Printer


Features

The all new Mimaki UJV55-320 grand format LED UV inkjet printer delivers a unique combination of high quality super wide output for volume production of banners, retail, exhibition and window graphics.

  • Super wide format printing (up to 3.2m)
  • High speed printing up to 110m2/h
  • Newly developed LUS-120 high performance UV curing ink including white
  • High density print mode for front/backlit applications

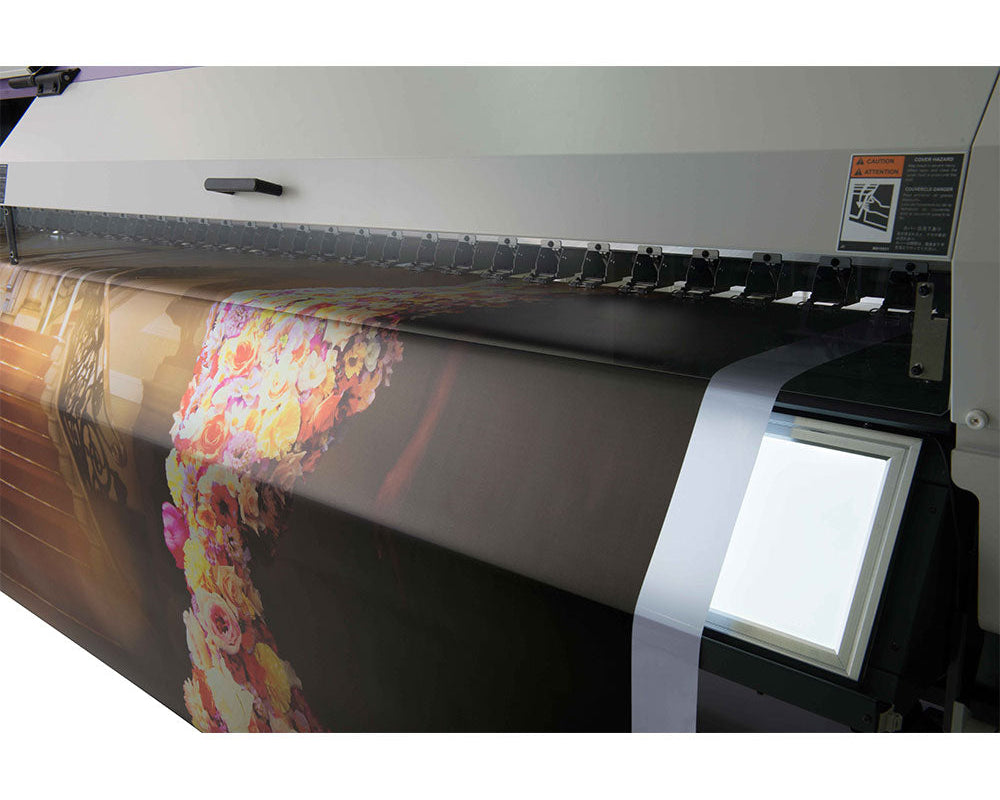

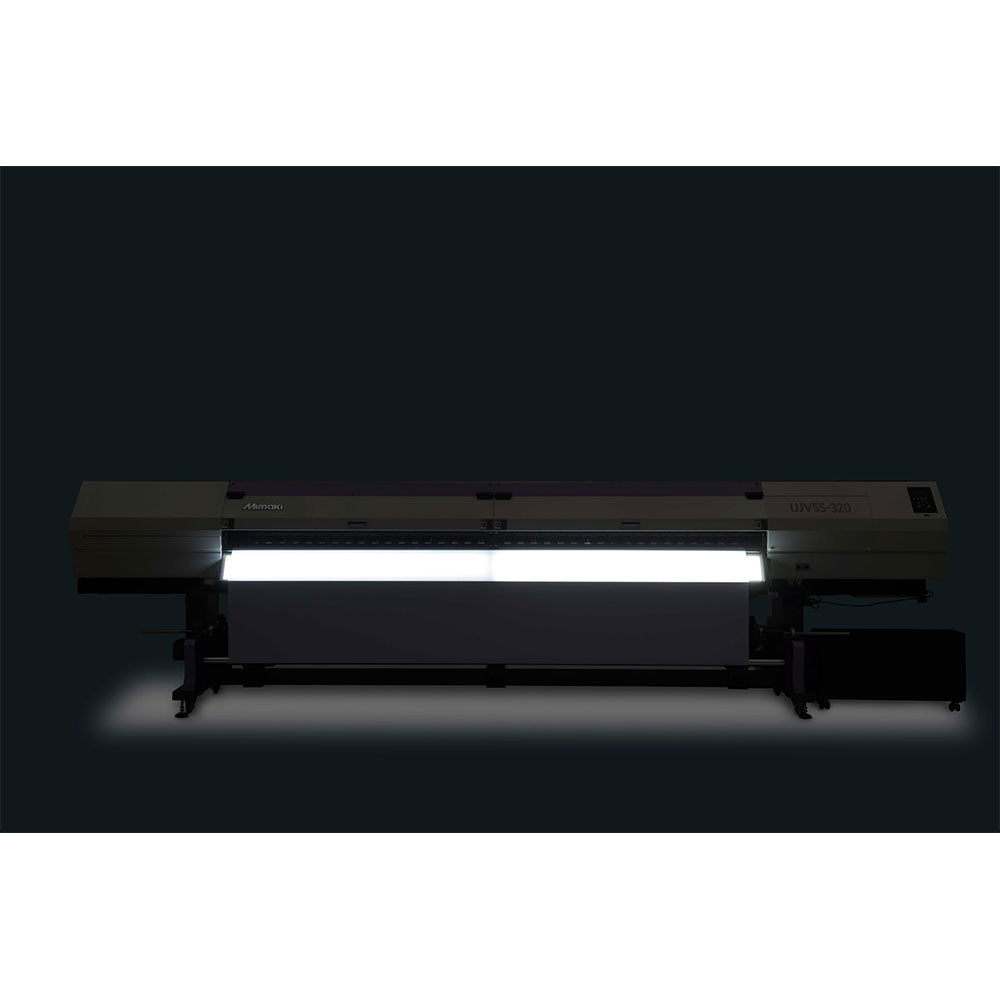

  • Inline LED Lightbox for backlit print inspection
  • MAPS, MFD1, NCU & NRS for optimal print quality & performance

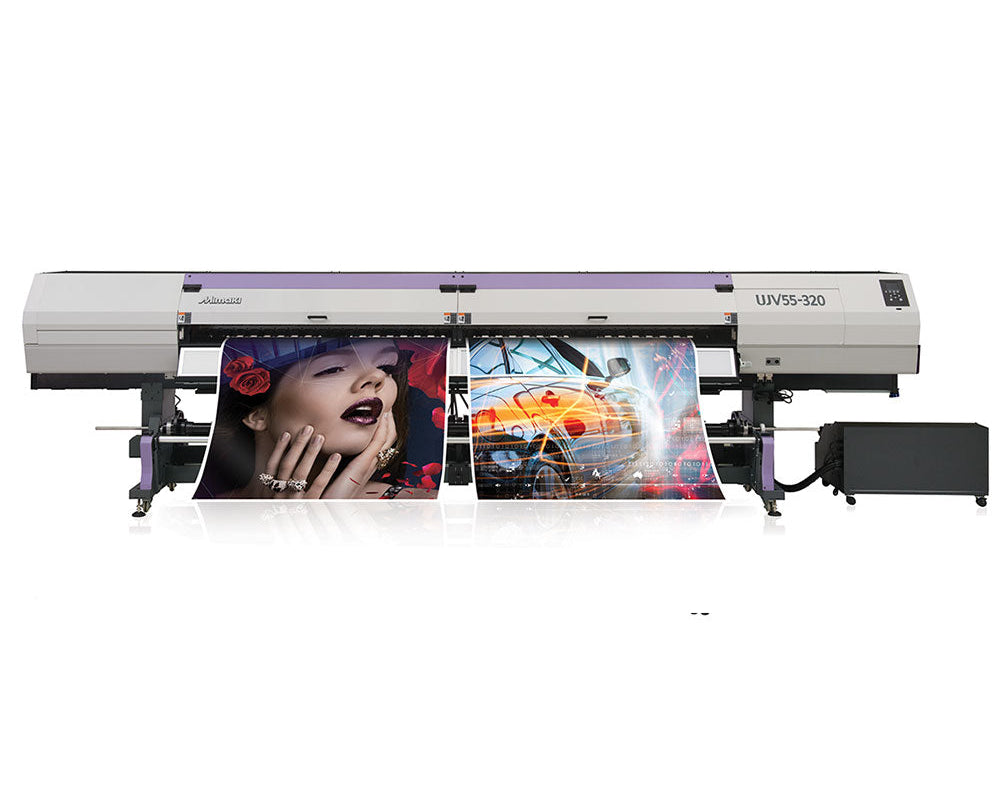

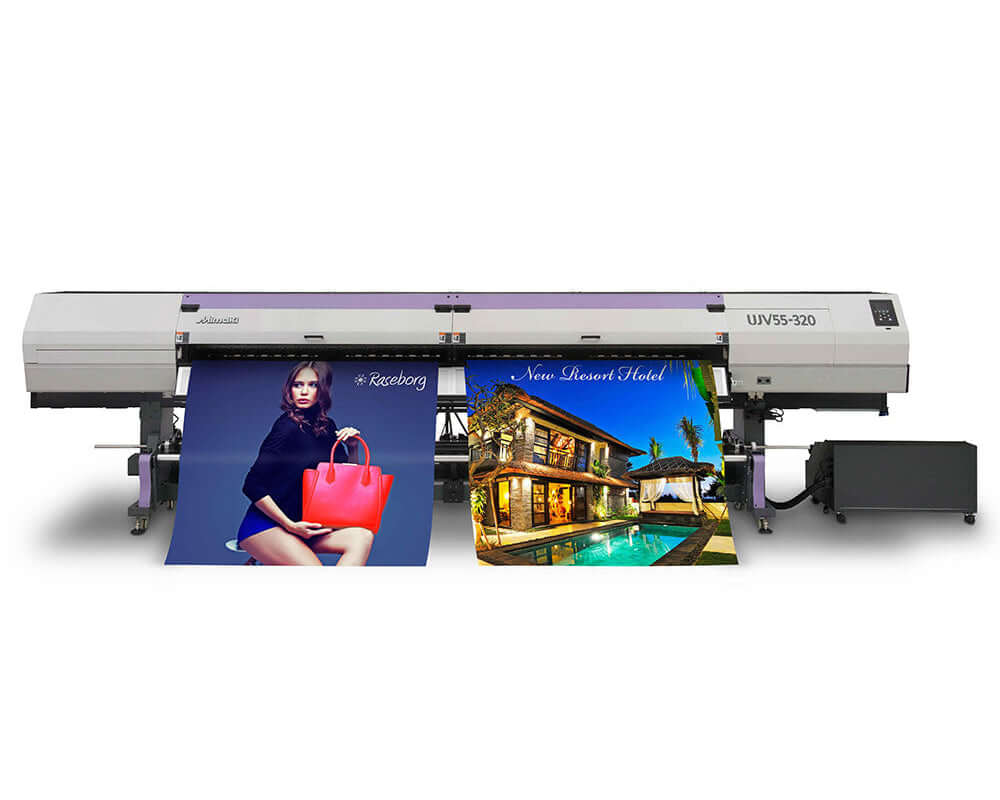

  • Simultaneous twin-roll print facility
  • Media roll weights up to 100kg

  • Video

    Specification

    Head On-demand piezo head (4 printheads / in 2 staggered array)
    Print resolution 300dpi, 600dpi, 900dpi, and 1200dpi
    Ink droplet size Minimum: 7pl Maximum: 36pl
    Head gap (Manual adjustment) 1.7mm / 1.9mm / 2.6mm / 3.3mm (Distance between the platen and the print head)
    Maximum print width 3,200mm
    Maximum media width 3,250mm(Twin rolls printing with a small drive shaft: 1,524mm × 2)
    Minimum media width 210mm
    Media thickness 1.0mm or less
    Roll outer diameter Large drive shafts: Φ250mm or less. | Small drive shaft with roll holders: Φ180mm or less.
    Roll weight Large drive shafts: 100kg or less.Small drive shaft with roll holders: 25kg or less
    Dimensions (W × D × H) 5,410mm × 995mm × 1,440mm excl. ink supply unit | 5,680mm x 1,220mm x 1,440mm incl. ink supply unit
    Shipping dimensions (W × D × H) 5,714mm × 1,136mm × 1,203mm
    Weight 910kg
    Power supply AC 200 – 240V ± 10% 50/60 Hz ± 1 Hz, 18 A or less.* 100V Power not available
    Power consumption 4.3kW or less
