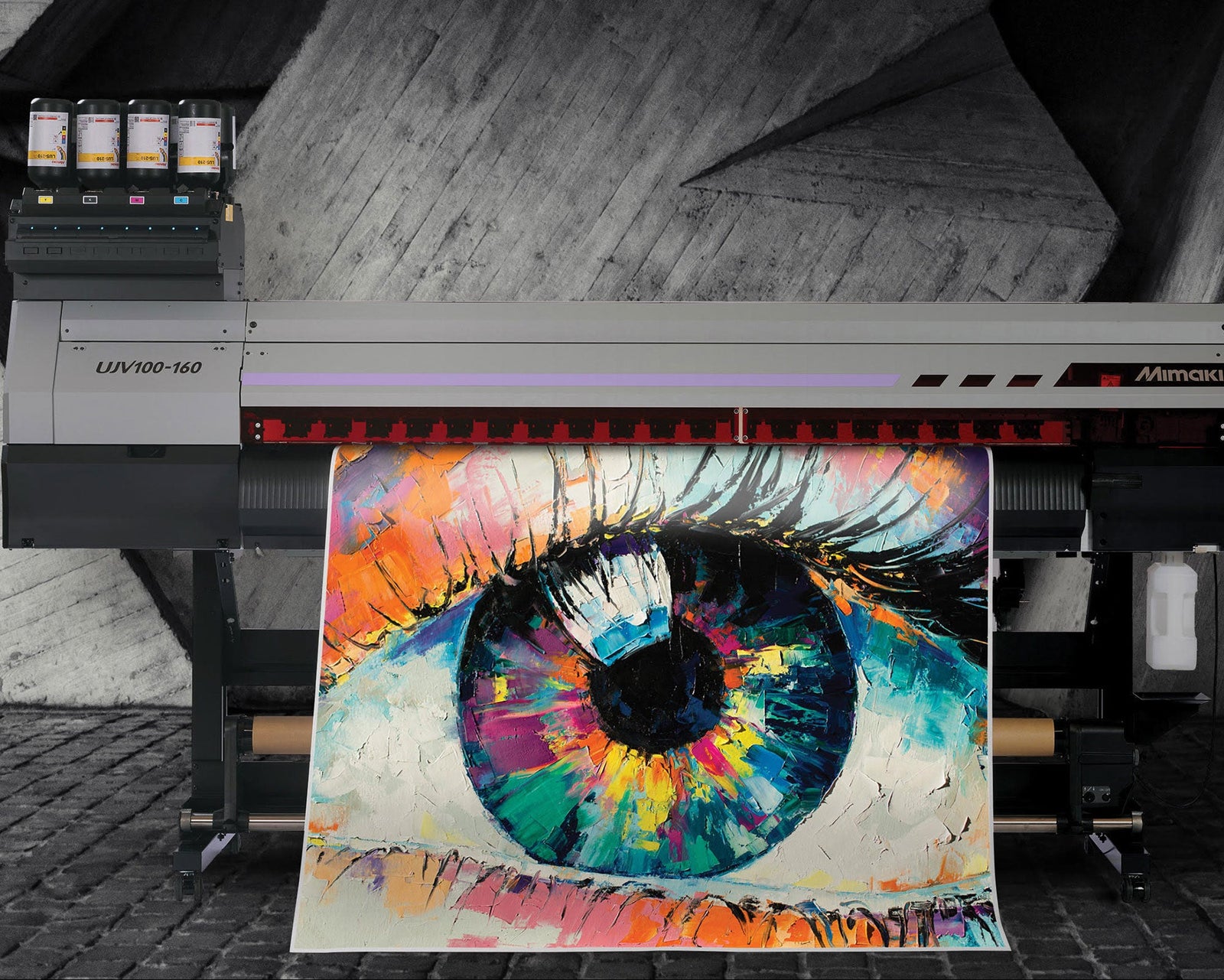

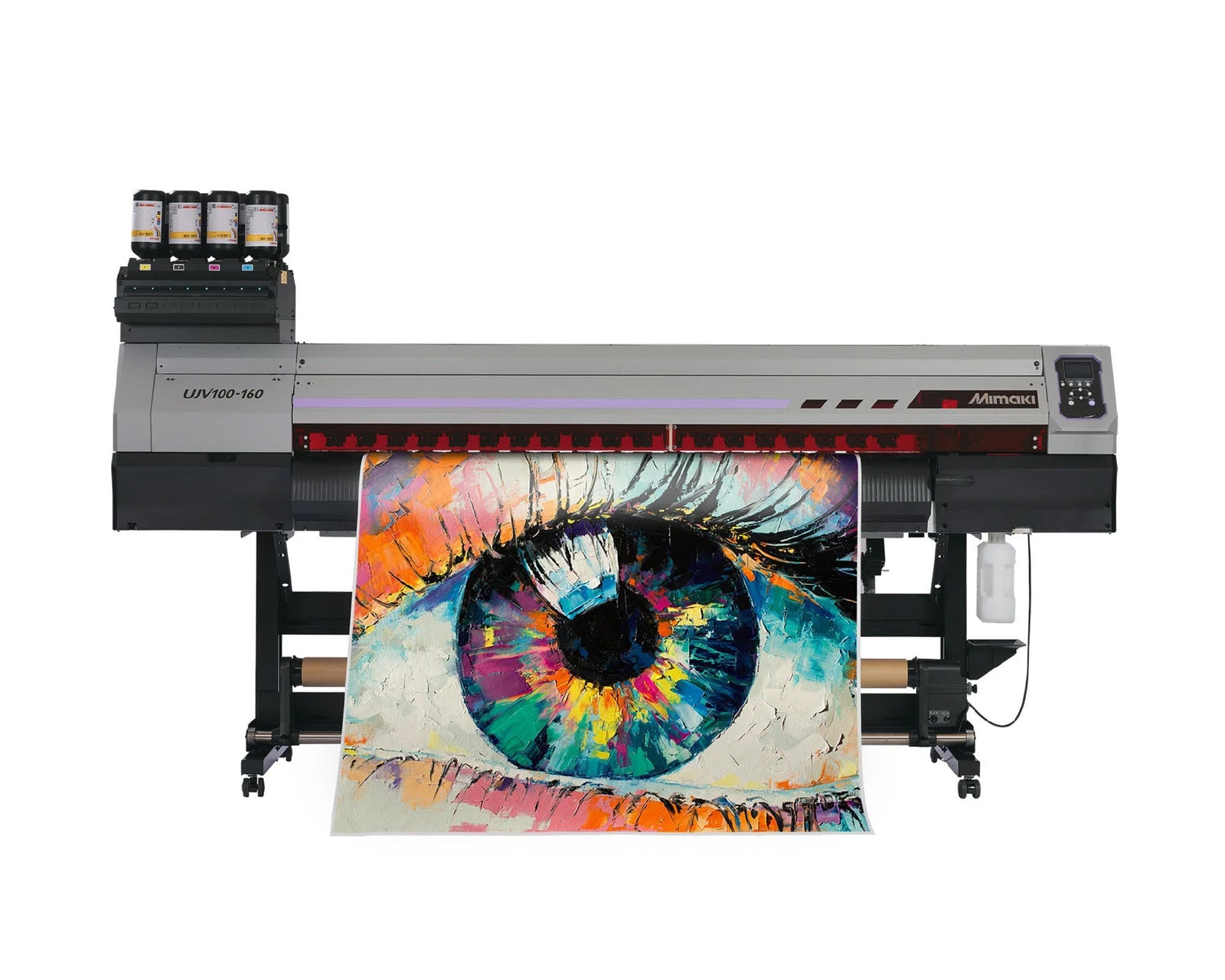

Mimaki UJV100-160 Printer


Model Options

1) UJV100-160

Max. print width 1610mm

With two newly developed heads the UJV100-160 has pursued high quality high productivity and stable operation as a UV-curable inkjet printer.


    • High-speed printing at a maximum of 23m²/h.*
    • Faster print speeds than the Mimaki UCJV150-160 UV Printer / Cutter.
    • Because no drying time is required it is possible to perform installation or lamination immediately after printing.
    • Print Colour and White ink in a single pass (opt for Colour then White or White then Colour)
    • Capable of supporting various media types and value-added prints achieved by using UV-curable ink.
    • New and improved genuine RIP (RasterLink 7) provides faster RIP processing and increased productivity.

*23m²/h: When printed on tarpaulin using the 4C Draft mode


The UJV100-160 is equipped with the DAS, a function to automatically adjust the dot position and feeding amount that affect print quality.

When media or printing conditions are changed, an adjustment of ink dot position and media feed amount to suit is necessary.
As the DAS automatically performs these operations, printing can be performed without any labor or variations in adjustments by the operator.




Print head On-demand piezo head (2 staggered layout)
Print resolution 360 dpi, 720 dpi, 900 dpi, 1200 dpi
Ink Type/ Color UV-curable ink LUS-170 (C, M, Y, K, W, Cl)
UV-curable ink LUS-210 (C, M, Y, K, W, Cl)
Capacity 1L bottle
Maximum print width 1,610 mm (63.4 in)
Media Maximum width 1,620 mm (63.8 in)
Thickness 1 mm or lower
Roll diameter φ250 mm or less
Roll weight 45 kg or less
Roll inside diameter 2 inch / 3 inch
Certifications VCCI class A, FCC class A, ETL IEC 62368-1,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
Interface USB2.0 / Ethernet 1000BASE-T
Power supply Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz
Operational environment Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)
Dimensions (W×D×H) 2,775 x 700 x 1,475 mm (109.3 x 27.6 x 58.1 in)
Weight 167 kg (368.2 lb)
