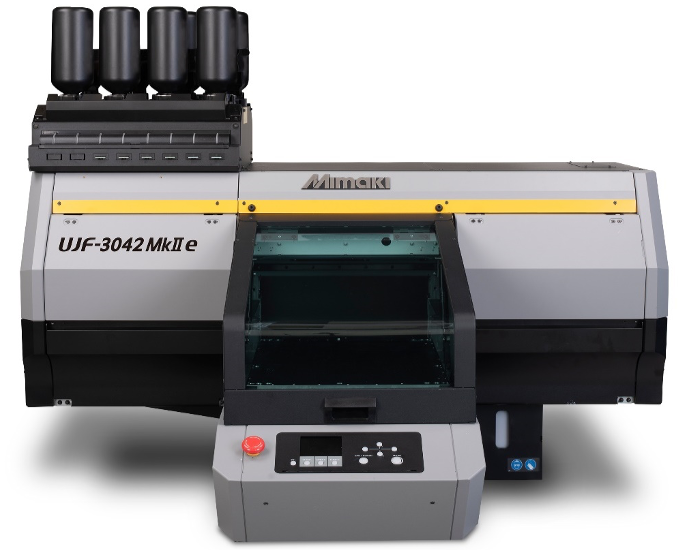

Mimaki UJF-3042 MKII Flatbed Printer


Model Options

1) UJF-3042 MKII

Max. printable area - Width:300mm / Length:420mm (A2 size)

2) UJF-6042MkII

Max. printable area - Width:610mm / Length:420mm (A2 size)

Mimaki’s latest UJF-3042 MkII and UJF-6042 MkII flatbed LED UV printers bring increased productivity and ease of use to on-demand, direct to object printing. Available in A3 or A2 format, these new models build on Mimaki’s peerless heritage to offer spectacular creativity and limitless opportunities when printing onto almost any material.


  • 20% increase in productivity when compared to UJF-3042/6042 Series* | (*when printing in 600x600dpi, 8pass mode)
  • Direct printing on substrates up to 153mm thick
  • MBIS bulk ink system with 250ml / 1,000ml bottles
  • Full cover protection prevents dust affecting print quality
  • Choice of LH-100 or LUS-120 inks, each with 9 colours including white, clear and primer
  • Exceptional print quality as a result of using Mimaki technologies including MAPS4, MFD1 and variable dot
  • Uninterrupted printing through the use of MCT, NCU and NRS technologies



Head On-demand Piezo head
Media jam / obstacle sensor Laser beam
UV unit Air-cooling LED-UV x1
Mist absorption fan Equipped
Noise Standby: Below 55dB (FAST-A, Front & Rear & Left & Right 1m)Continuous printing: Below 65dB / Discontinuous printing: Less than 70dB
Standards VCCI-Class A, FCC ClassA, CE Marking (EMC Directive, Machine instruction, RoHS Directive, Low Voltage Directive), CB Report, RoHS compliance
Power specification Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz
Power consumption Less than 800W
Interface USB2.0 / Ethernet 1000BASE-T
