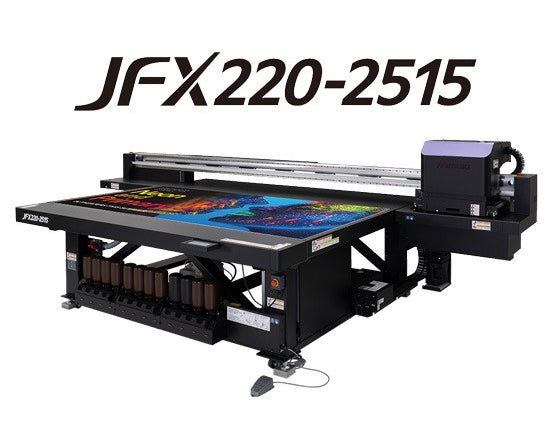

The new Mimaki JFX220-2515 combines high-speed production, advanced substrate handling and expanded creative capabilities in a powerful large-format flatbed UV printer.
Overview
The Mimaki JFX220-2515 is a newly developed large-format flatbed UV printer designed to deliver increased productivity and greater flexibility across a wide range of applications.
Featuring Mimaki's new ANCHOR TECHNOLOGY, the JFX220-2515 is designed to simplify substrate preparation while securely holding challenging materials, including warped substrates such as corrugated cardboard and acrylic sheets.
With a maximum print area of 2,500 × 1,500 mm, support for substrates up to 101.6 mm (4") thick and CMYK print speeds of up to 56 m²/h, the JFX220-2515 is built for demanding production environments.
The printer is scheduled to go on sale in October 2026.
Features
ANCHOR TECHNOLOGY – New suction and holding technology reduces preparation time and securely holds substrates in place.
High-speed production – CMYK-only printing reaches up to 56 m²/h, approximately 17 4 × 8 ft boards per hour, excluding substrate loading.
Large print area – Print directly onto media up to 2,500 × 1,500 mm.
Thick substrates – Direct printing onto materials up to 101.6 mm (4") thick.
LD Mode – Print onto curved and uneven surfaces with a printing distance of up to 20 mm from the print head to the printing surface.
3D and tactile effects – Ink build-up of up to 5 mm allows for raised, textured and three-dimensional graphics.
Fluorescent UV inks – Supports fluorescent yellow and pink for vibrant, attention-grabbing graphics.
Flexible ink configurations – Supports Mimaki ELH-100 hard UV inks, ELS-120 flexible UV inks, EFS-150 fluorescent inks and PR-200 primer.
High image quality – On-demand piezo print heads with resolutions up to 1,200 dpi.
Videos
More Mimaki JFX220-2515 videos will be added as they become available.
