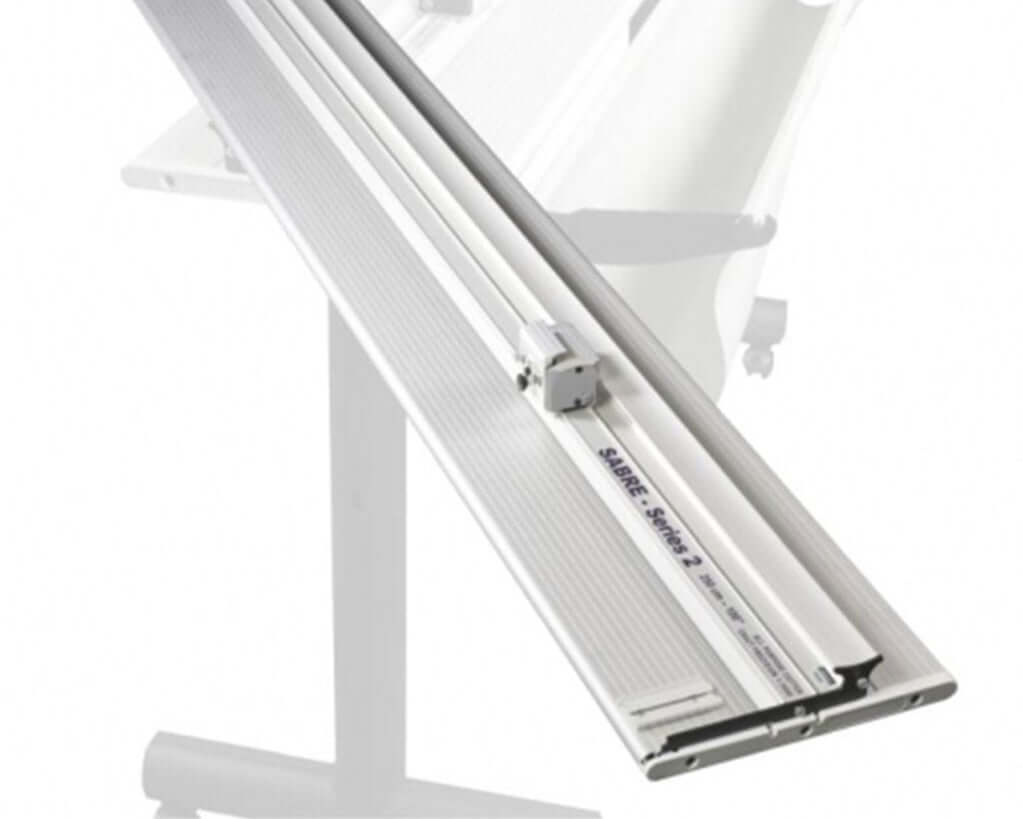

Keencut Sabre Series 2

CONTACT US FOR BEST PRICE

Overview

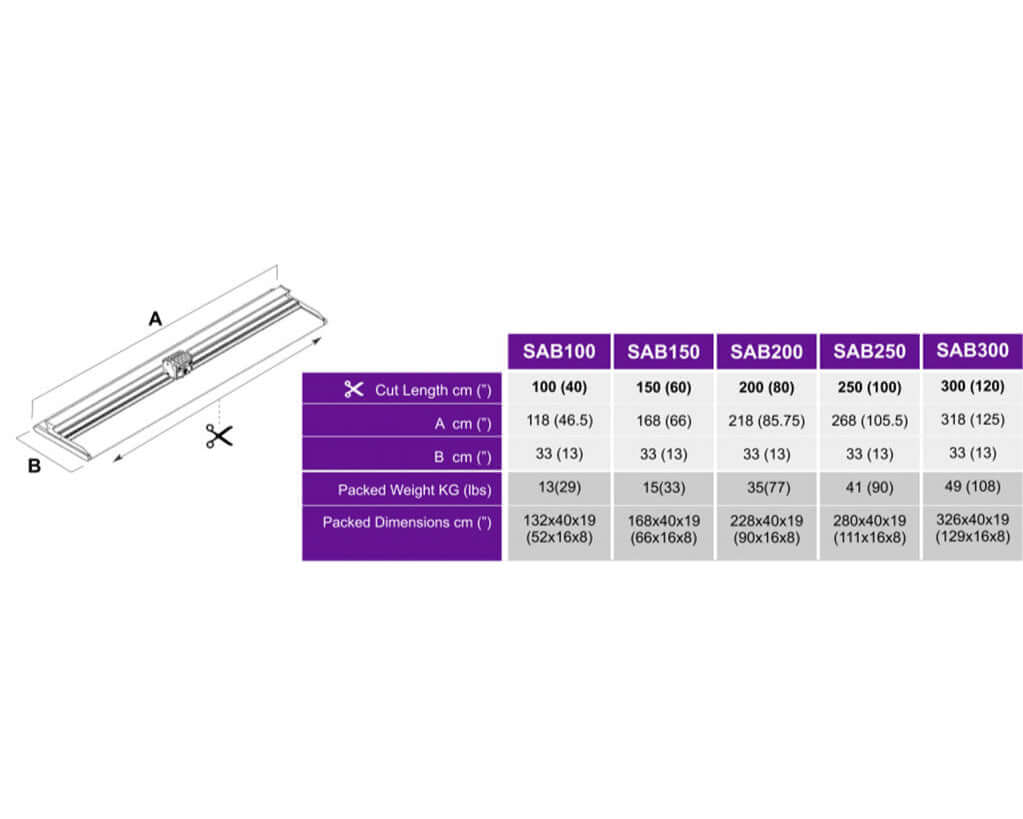

Model Options

1) SAB100

Cut length - 100cm

2) SAB150

Cut length - 150cm

2) SAB200

Cut length - 200cm

2) SAB250

Cut length - 250cm

2) SAB300

Cut length - 300cm


Efficiently engineered for one off or volume production, the Sabre-Series 2 offers the same exact cutting capabilities as the Keencut Javelin and Evolution E2 and is constructed on a robust anodised aluminium baseboard.

Efficiently engineered for one off or volume production

Features

  • Guaranteed 1:3000 straightness accuracy making the Sabre Series 2 ideal for general purpose cutting applications like roll-up banners and signage
  • With an integral base included the Sabre Series 2 is designed to sit directly on any bench of equal or greater size or mounted to the optional stand/stand packs
  • Comes as standard with three different types of Blade Holders: Graphik Blade Holder (1), Medium Duty Blade Holder (1) and the Circular Knife Blade Holder (1) to provide maximum versatility and cutting options
  • Reverse the Graphik Blades (included) to set the machine to cut Left-Right, Right-Left or both
  • Using the single tool cutting and included blade holders, switch between cutting different materials in seconds
  • The new large diameter textile wheel improves performance and longevity – cutting mat will be required
  • When heat cutting and sealing is required the Keencut Hot Knife Holder sliding head can be quickly attached with the appropriate electric Hot Knife and detached in seconds
  • Fully equipped and ready to work with blades included
  • Patented space age bearing and slide system designed for operator adjustment and minimal maintenance
  • Available in five practical sizes, from 1.0 to 3.0 metres

Keencut Cutter Guide

Keencut Cutter Guide

Download the Keencut Cutter Guide

Keencut Product Chart

Keencut Product Chart

Video

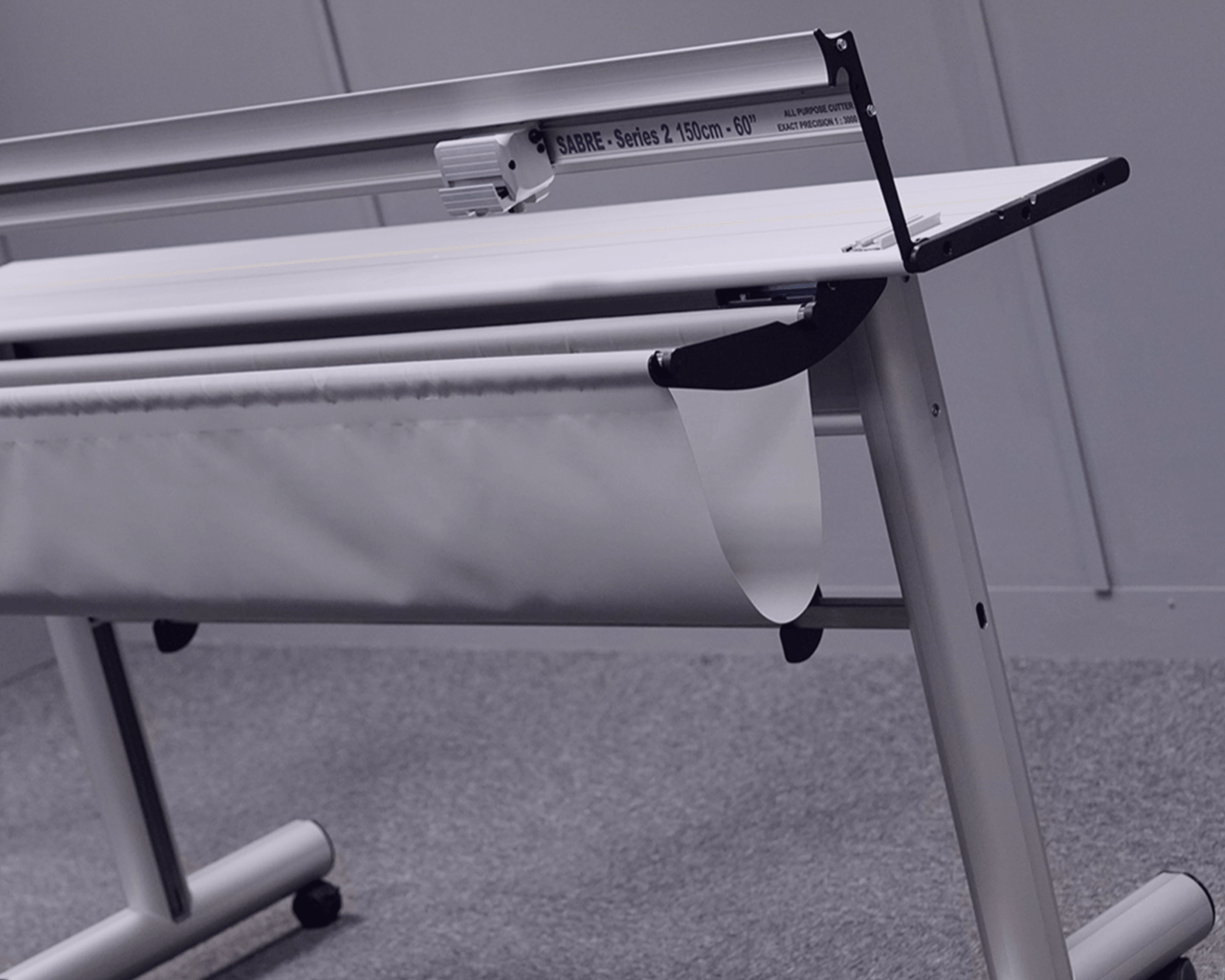

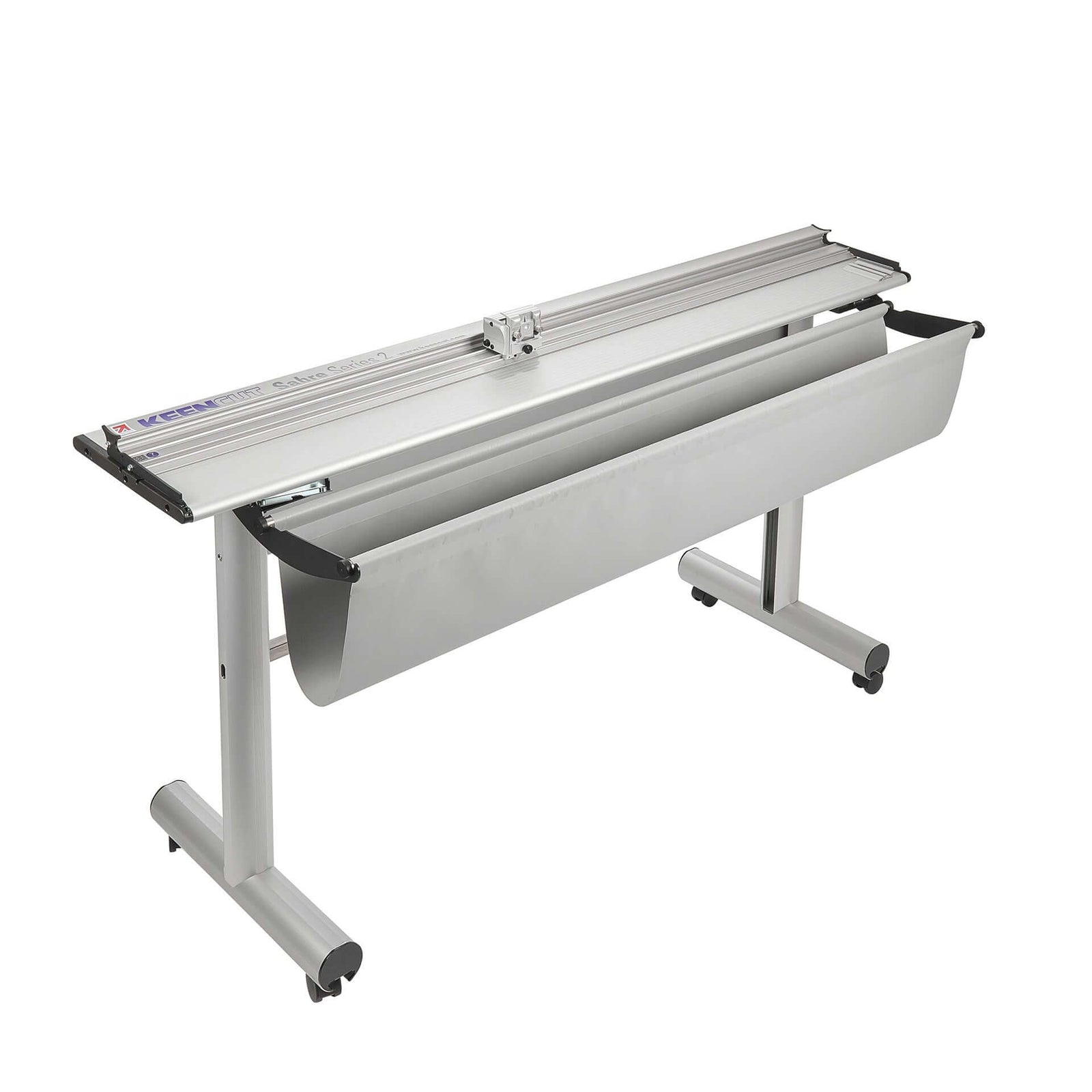

The Sabre-Series 2 is designed for use on a bench or attached to the optional stand. Using the lockable castors (included with stand) Sabre-Series 2 can be moved and positioned alongside any wide-format printer. The stand, also available with optional waste catcher and roll feed, makes the  Sabre-Series 2 a versatile cutter with no equal.

A recess integral to the base protects the blade tip when cutting and a cutting mat can be added for cutting textiles. Full length silicon rubber grip strips in the Sabre-Series 2 base and underside of the cutter bar clamp materials when cutting and provide protection to even the most sensitive surfaces. The self-adjusting hinges give lay-flat cutting on all materials up to 13mm (0.5”) in thickness.

The blades cut to a depth of 13mm (0.5”) and the patented linear bearings have been tested under load for 1600km (1000 miles) and carry a 20 year guarantee.

Specification

FEATURES & PERFORMANCE

  • Guaranteed 1:3000 straightness accuracy making the Sabre Series 2 ideal for general purpose cutting applications like roll-up banners and signage
  • With an integral base included the Sabre Series 2 is designed to sit directly on any bench of equal or greater size or mounted to the optional stand/stand packs
  • Comes as standard with three different types of Blade Holders: Graphik Blade Holder (1), Medium Duty Blade Holder (1) and the Circular Knife Blade Holder (1) to provide maximum versatility and cutting options
  • Reverse the Graphik Blades (included) to set the machine to cut Left-Right, Right-Left or both
  • Using the single tool cutting and included blade holders, switch between cutting different materials in seconds
  • The new large diameter textile wheel improves performance and longevity – cutting mat will be required
  • When heat cutting and sealing is required the Keencut Hot Knife Holder sliding head can be quickly attached with the appropriate electric Hot Knife and detached in seconds
  • Fully equipped and ready to work with blades included
  • Patented space age bearing and slide system designed for operator adjustment and minimal maintenance
  • Available in five practical sizes, from 1.0 to 3.0 metres

EASE OF OPERATION & SAFETY

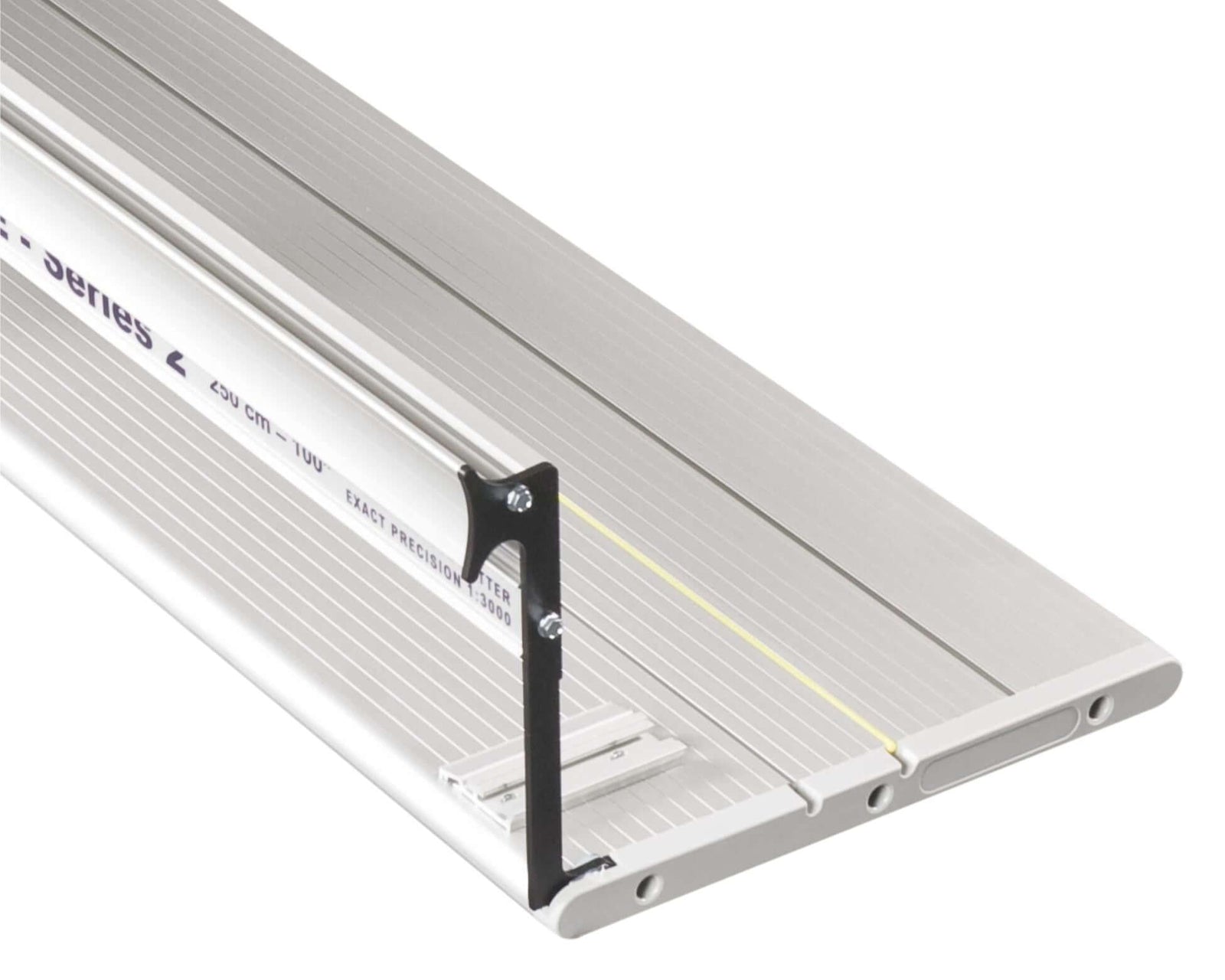

  • Integral hinge arms support the slideway to enable user to lift and suspend it off the work-surface when moving or repositioning media
  • Blade locking thumb screw adds safety & convenience
  • Tools interchange quickly for maximum productivity
  • Spring loaded blade holders immediately retract when not in use
  • Multiple integral full length grip cords hold work safe and sure while cutting
  • Total dust free operation - safe to use near printers and plotters
  • Circular knife supplied with blade guard to be engaged when not in use

GUARANTEES & CONSTRUCTION

  • 100% manufactured by Keencut Technicians in England
  • Super grade anodising for lifetime good looks and function
  • Designed specifically for the design & display industries
  • 5 year comprehensive guarantee
  • 20 year replacement guarantee on all slide bearings

MATERIALS THE SABRE SERIES 2 WILL CUT

  • Flag, banner, PVC Foamboard, foamcore, cardboard, corrugated plastic, polystyrene, flexible polycarbonate, flexographic plates, flooring tiles, magnetic sheet, film, self-adhesive materials and more
  • For a list of materials and thicknesses the Sabre Series 2 will cut please refer to the Product Comparison Chart
  • To compare the Sabre Series 2 against the complete range of Keencut Cutter Bars please refer to the Cutter Bar Comparison Chart
