High speed and High quality: Max. print speed 200m²/h (in Dual CMYK mode) with 6-colour ink configuration capabilities.

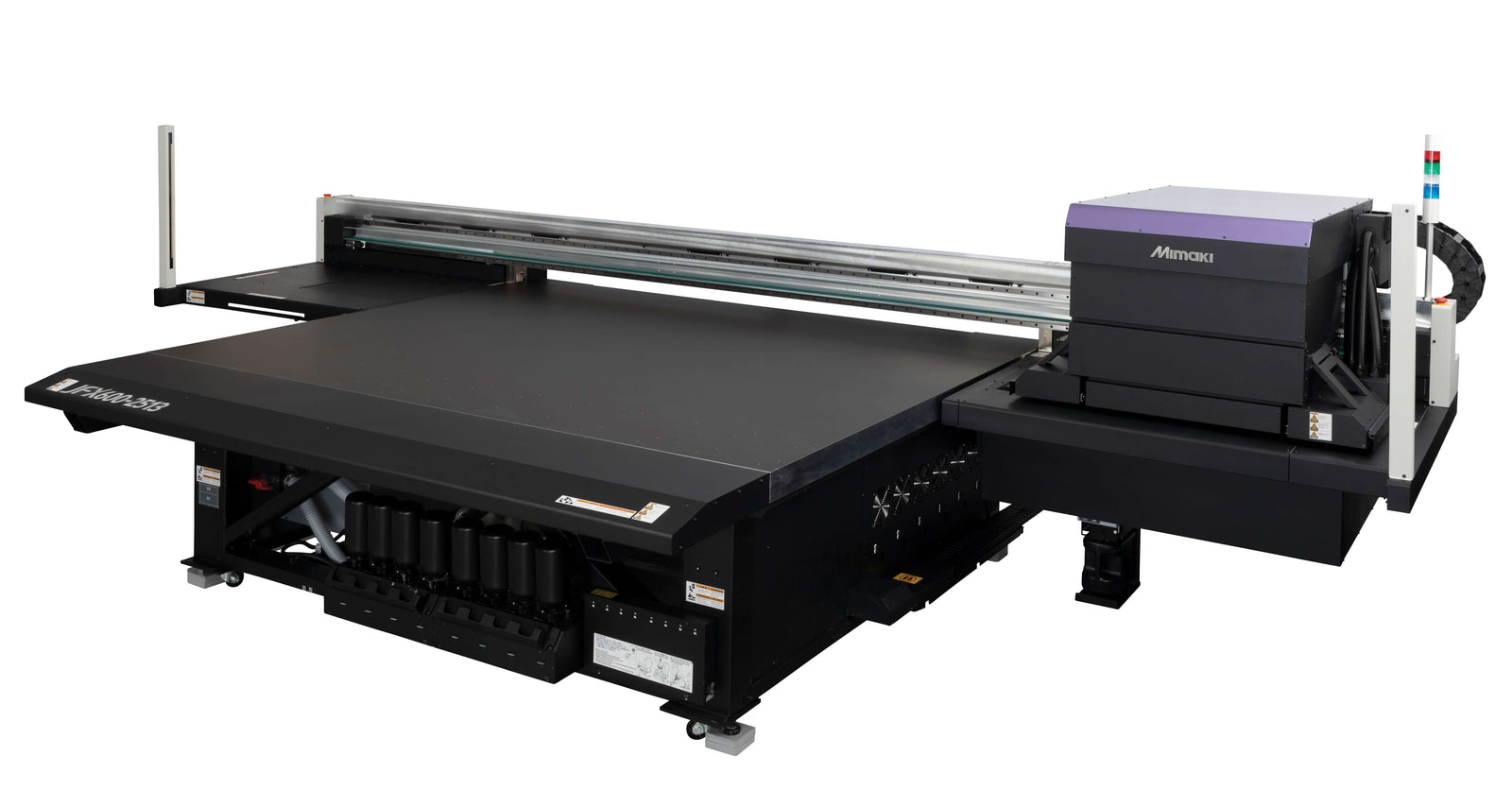

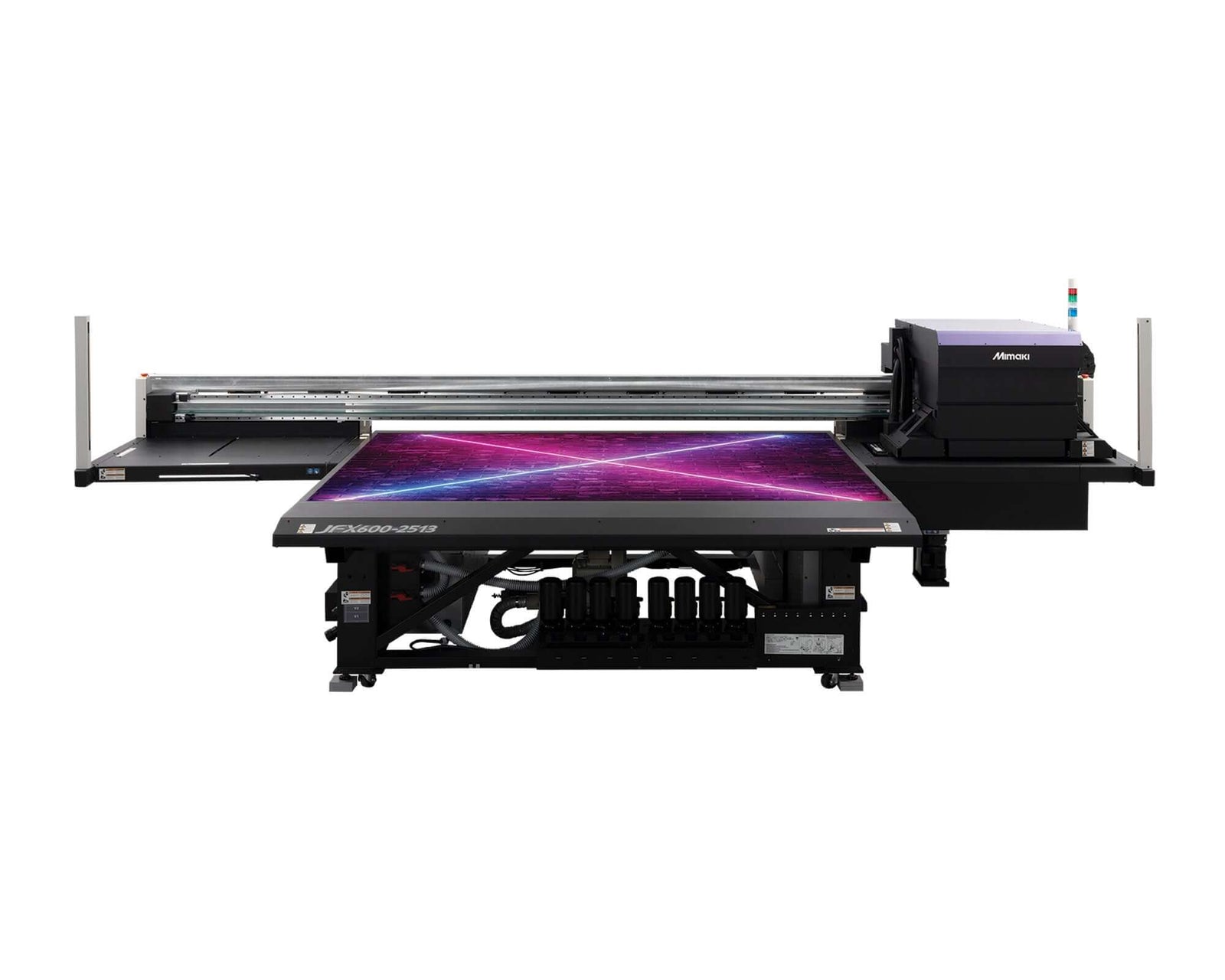

The new JFX600-2513 is the successor model to the JFX500-2131. It is a large-format flatbed UV inkjet Printer that further pursues speed and quality, the two key factors required of large-format Printers.
Up to 330% faster print speed than JFX500 for improved productivity.
Six colors available, including light colors.
The UV inks for the both models are certified as GREENGUARD Gold due to their environmental friendliness
MPC using a graphical user interface.
Designed with usability in mind: table size & vacuum table, supporting media as thick as 60 mm.
Incorporation of the reliable Mimaki technology.
Variable expression to add more value to prints.
3L Ink supply option: Enhanced productivity through the reduction of frequent ink replacement tasks
Support for “MDL commands” achieves automation and labor saving of printing process such as workpiece transfer.
16 printheads arranged in 4 staggered lines of 4 heads
Maximum print area
2500 × 1300 mm
Printing resolutions
600, 1200 dpi
Ink type
Flexible UV-curable ink LUS-120 / LUS-150
Ink supply system
Supplied from 1-litre bottles for each colour
Media Size
2500 × 1300 mm (w x d)
Media thickness
Up to 60mm
Media weight
Less than 50 kg/m2 non concentrated load
Media set device
Blower adsorption type + foot switch
UV device
Equipped with UV LED
Interface
Ethernet 10GBASE-T
Power consumption
INLET1-3, each INLET: 4,800W or less
Dimensions (w x d x h)
Approx. 5,300 × 2,850 × 1,700 mm or less （208.7 × 112.2 × 66.9”）
Weight
Approx. 1,200 kg (2,645.5 lb) or less
Overview
Model Options
1) JFX600-2513 - Mimaki's Fastest Flatbed
Max. print area - 2.5m x 1.30m
High speed and High quality: Max. print speed 200m²/h (in Dual CMYK mode) with 6-colour ink configuration capabilities.
The new JFX600-2513 is the successor model to the JFX500-2131. It is a large-format flatbed UV inkjet Printer that further pursues speed and quality, the two key factors required of large-format Printers.
Up to 330% faster print speed than JFX500 for improved productivity.
Six colors available, including light colors.
The UV inks for the both models are certified as GREENGUARD Gold due to their environmental friendliness
MPC using a graphical user interface.
Designed with usability in mind: table size & vacuum table, supporting media as thick as 60 mm.
Incorporation of the reliable Mimaki technology.
Variable expression to add more value to prints.
3L Ink supply option: Enhanced productivity through the reduction of frequent ink replacement tasks
Support for “MDL commands” achieves automation and labor saving of printing process such as workpiece transfer.
