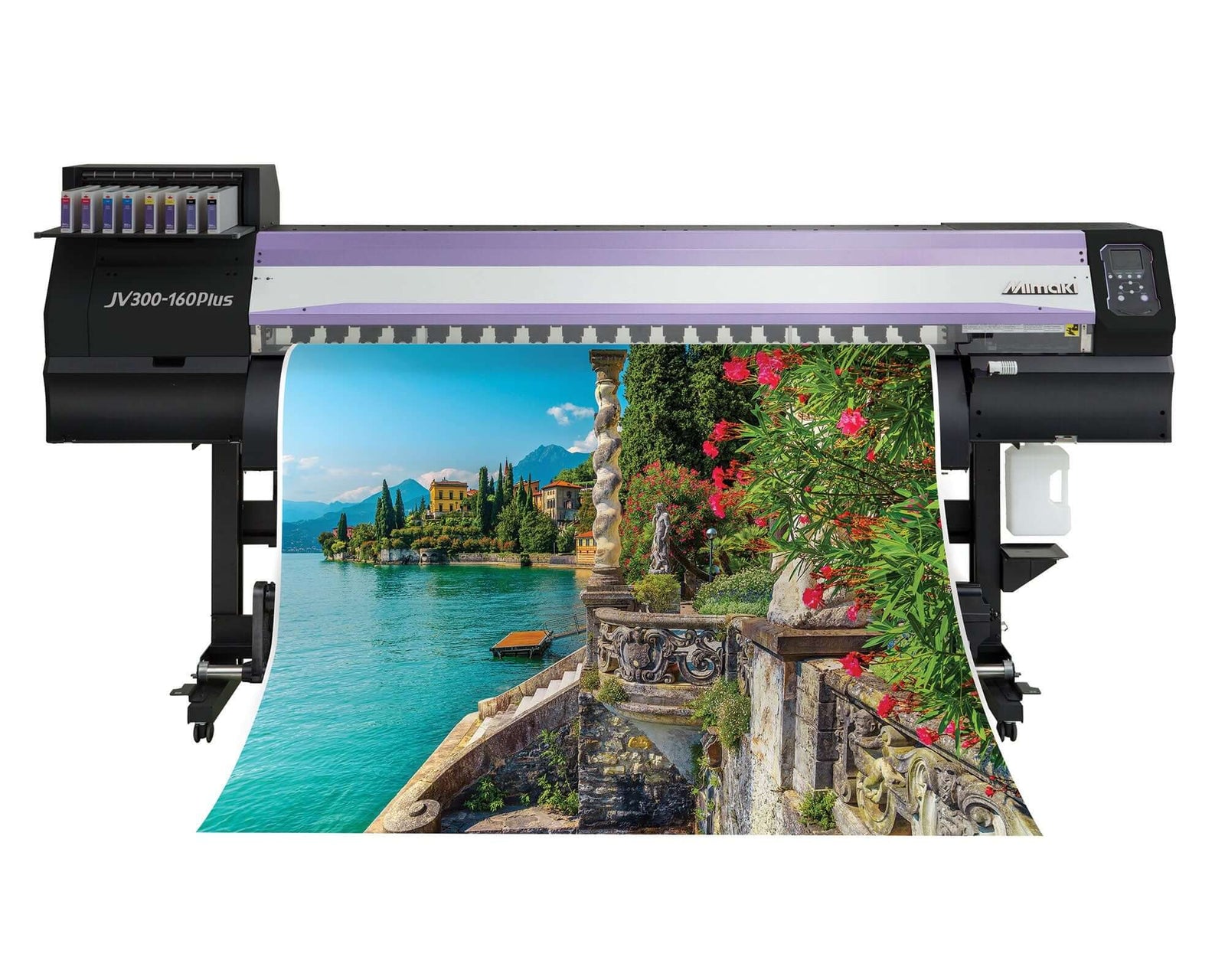

Mimaki JV300-160plus Printer

Overview


Model Options

1) JV300-160plus

Max print width - Up to 1,610mm (63.3”)


The Plus model introduces a new ID Cut function, which utilises barcodes for error reduction and increased efficiency.
This also facilities continuous / automated Print and Cut capabilities - run a number of unique Print jobs and the new barcoding feature will automatically cut these one after the next.
Finally, the Plus model is equipped with 600ml ink sacks, which cuts down on ink cost by 2.3 pence per ml.


Next generation printer with beautiful output and high productivity.

Mimaki’s latest high performance JV300 Series sets a new benchmark for professional wide format printers. With the unrivalled versatility of multiple ink types, the JV300 delivers stunning photo-quality prints at class leading speeds and provides the ultimate wide format solution for sign and graphics professionals, sportswear and fashion manufacturers, print shops and more.

Features

  • Fast printing speeds of up to 105.9m2 per hour
  • High quality print resolution of up to 1,440dpi
  • Printing width - 1,610 mm
  • Choice of multiple eco solvent and dye sub ink sets, including: 9 colour options (SS21) - orange, light black and white inks vibrant 6-colour dye sub options (Sb53)
  • UISS and optional MBIS III on-board 2 litre bulk ink system
  • MAPS3 with variable dot and large ink drop provides high quality at high speed
  • 3 way intelligent heaters.
  • Mimaki RasterLink 6 RIP software included as standard.

Video

Specification

Item JV300-160 Plus
Printhead On-demand piezo head (2 staggered printheads)
Print resolution 360 / 540 / 720 / 1,080 / 1,440dpi
Maximum print width Up to 1,610mm (63.3”)
Maximum media width Up to 1,620mm (63.7”)
Ink Type / Colour (*1) Eco-solvent:



–         SS21 (C, M, Y, K, Lc, Lm, Lk, Or, W)

–         ES3 (C, M, Y, K, Lc, Lm, W)

–         BS3 (C, M, Y, K)

–         BS4 (C, M, Y, K)

Water-based sublimation ink:

–         Sb54 (Bl, M, Y, K)

Package size (*2) SS21: 440ml Ink cartridge, 600ml/2L Ink pack



(White: 220ml ink cartridge only)

BS3/BS4: 600ml/2L Ink pack

ES3: 440ml Ink cartridge

(White: 220ml ink cartridge only)

Sb54: 400ml Ink cartridge/2L Ink pack

Circulation system MCT (Mimaki Circulation Technology) only applies white ink
Media thickness 1.0mm or less
Rolled media weight 45kg (99.2lb) or less
Interface USB 2.0 / Ethernet 1000BASE-T
Power supply Single-phase (AC100-120V) / AC200-240V) x 2 50Hz / 60Hz ±1Hz 1Hz
Power consumption 1440W x 2 or less (AC100V) / 1920W x 2 or less (AC200V)
Operational environment Temperature: 20ºC-30ºC (59-86ºF)



Humidity: 35-65% RH (non-condensing)

Dimensions (W×D×H) 2,775 x 700 x 1,392mm (109” x 28” x 55”)
Weight 200kg (440.9lb)
