Keencut Simplex

Overview

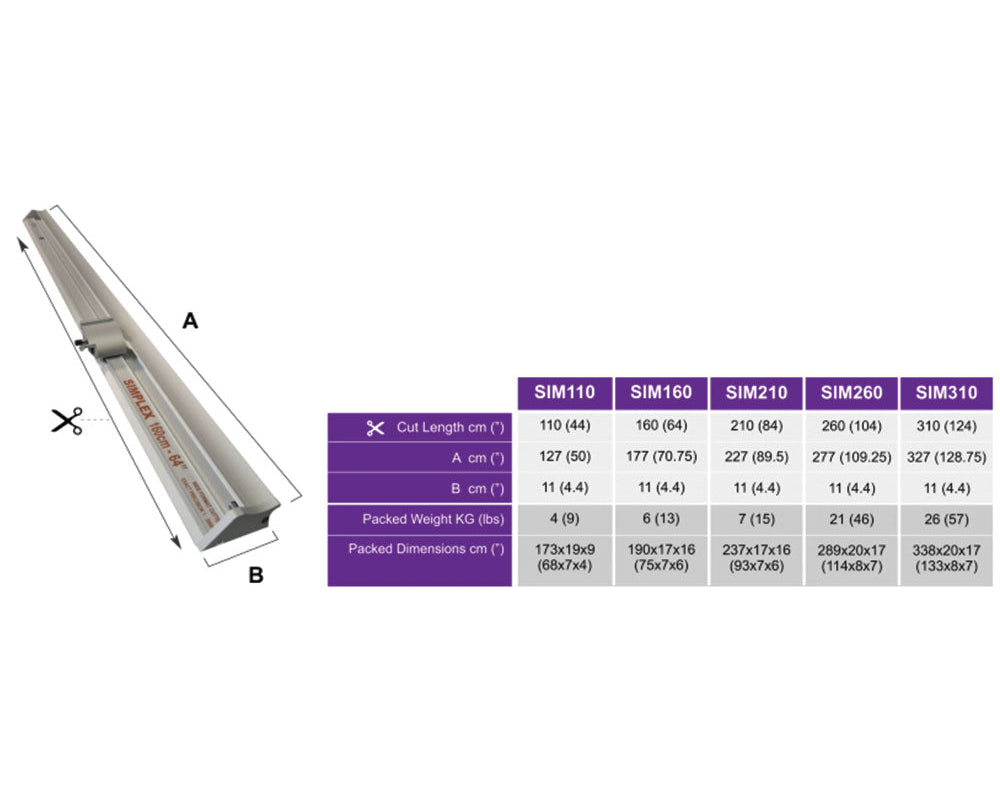

Model Options

1) SIM110

Cut length - 110cm

2) SIM160

Cut length - 160cm

1) SIM210

Cut length - 210cm

1) SIM260

Cut length - 260cm

1) SIM310

Cut length - 310cm

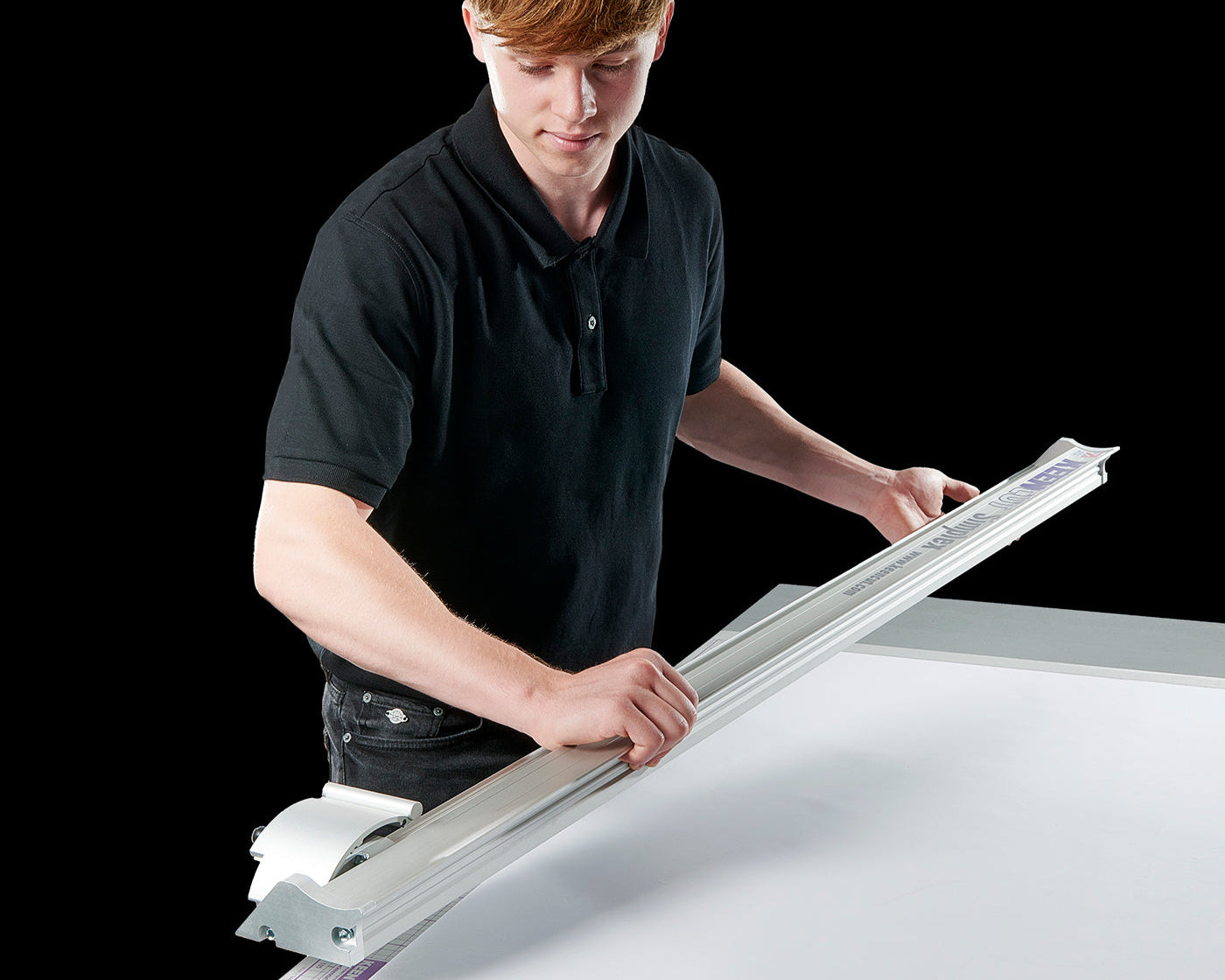

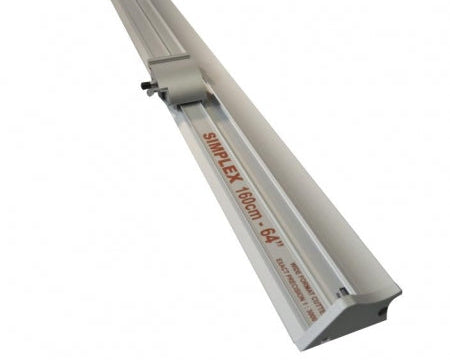

Keencut Simplex’s innovative design offers exact accuracy for general purpose cutting of wide format materials up to 3.1mtrs wide. Keencut Simplex features a straightness guarantee of 1.00mm, or 1:3000 over the length of the cutter bar, Simplex is an economical alternative to the Keencut Javelin where less extreme accuracy is required. Simplex - Lightweight, portable, versatile.

Features

Keencut Simplex is lightweight, portable, and perfect for cutting PVC Foamboard, Vinyl, Woven Fabrics, Foam Centred Board, Honeycomb and Corrugated Plastics, Film, Paper and many more flexible and rigid display materials.

The Simplex uses utility knife blades and features blade depth adjustment and a spring-loaded blade ejector as standard. The utility blades will cut to a depth of 10mm (0.4”). The patented linear bearings have been tested under load for 1600km (1000 miles) and carry a 20 year guarantee. Full length silicon rubber grip strips ensure all work is clamped when cutting and also protect the surface of the material being cut.

Available in 5 sizes: 1.1m (44"), 1.6m (64"), 2.1m (84"), 2.6m (104") and 3.1m (124")


Features & Performance

  • Guaranteed 1:3000 straightness accuracy making the Simplex ideal for general purpose cutting applications like roll-up banners and signage

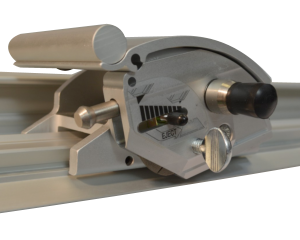

  • Comes as standard with the original ‘Rocker Style’ Cutting head which accepts medium duty utility blades
  • Comes equipped with a pack of 100 reversible Medium Duty Blades
  • Maximum depth of cut is 10mm
  • Increase depth of cut to 13mm using the Keencut XR Blades
  • Patented space age bearing and slide system designed for operator adjustment and minimal maintenance
  • Optional Textile Cutting Attachment available for cutting fabrics and delicate materials
  • Available in five practical sizes from 1.1 to 3.1 metres

Keencut Cutter Guide

Keencut Cutter Guide

Keencut Product Chart

Keencut Product Chart

Video

No video available

Specification

    EASE OF OPERATION & SAFETY

    • Lightweight for convenient portability

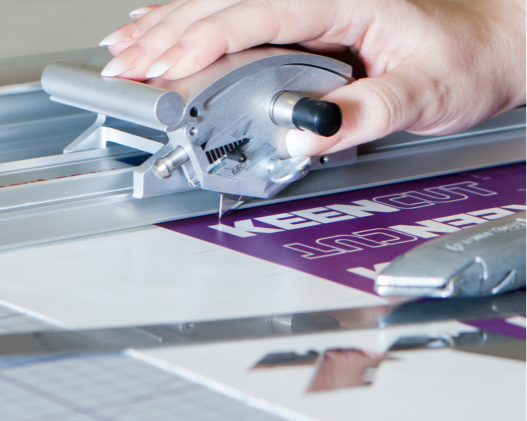

    • Spring loaded blade holders immediately retract when not in use
    • Multiple integral full length grip cords hold work safe and sure while cutting
    • Total dust free operation - safe to use near printers and plotters

    GUARANTEES & CONSTRUCTION

    • 100% manufactured by Keencut Technicians in England
    • Super grade anodising for lifetime good looks and function
    • 5 year comprehensive guarantee
    • 20 year replacement guarantee on all slide bearings

    MATERIALS THE SIMPLEX WILL CUT

    • Flag, banner, PVC Foamboard, foamcore, cardboard, corrugated plastic, polystyrene, flexible polycarbonate, flexographic plates, flooring tiles, magnetic sheet, film, self-adhesive materials and more
    • For a list of materials and thicknesses the Simplex will cut please refer to the Product Comparison Chart
    • To compare the Simplex against the complete range of Keencut Cutter Bars please refer to the Cutter Bar Comparison Chart
