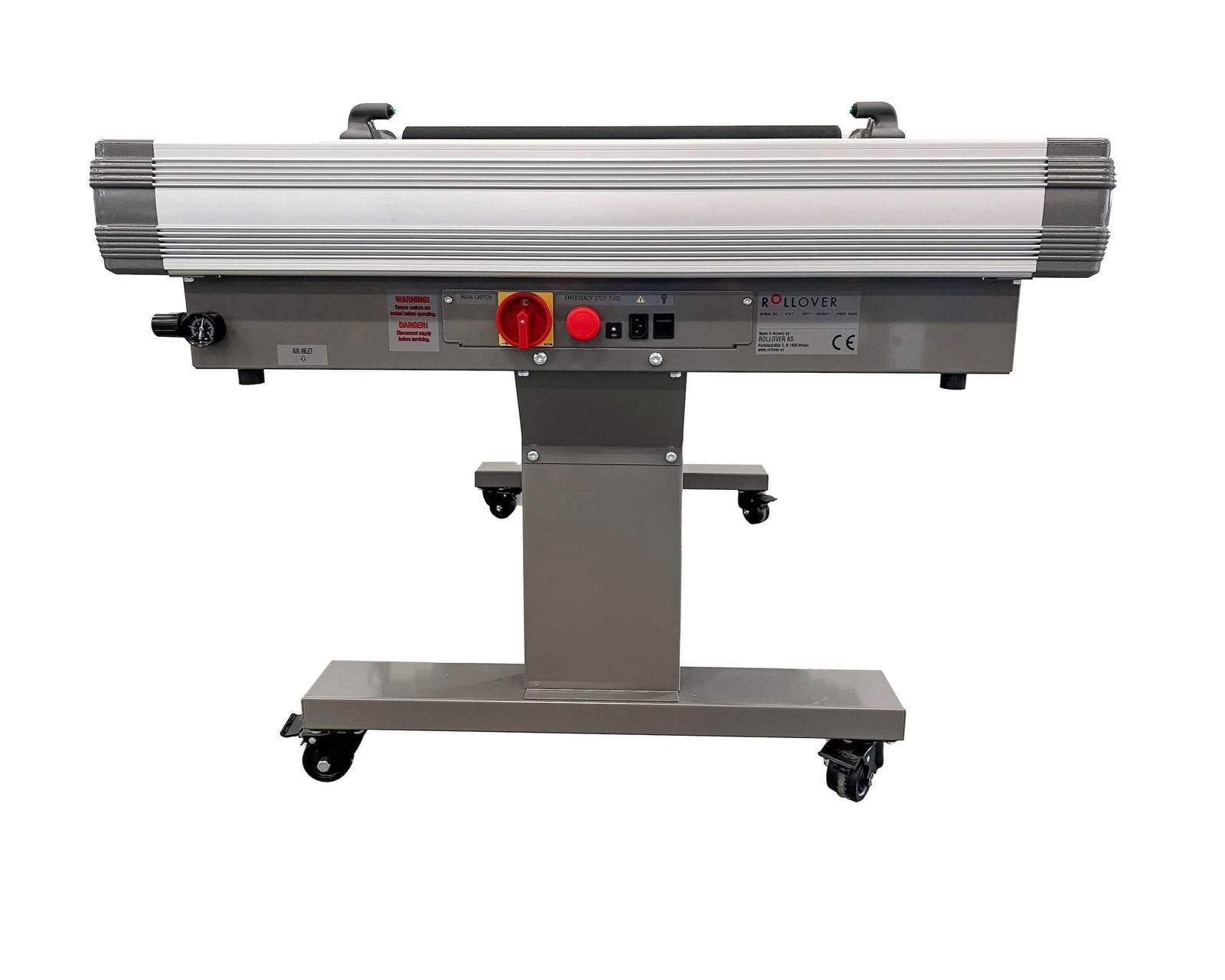

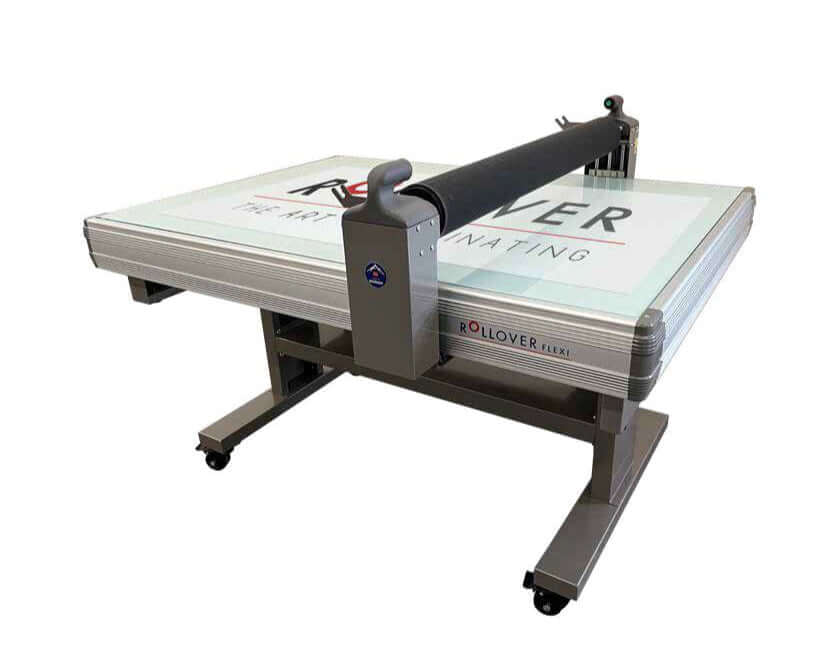

The Rollover Flexi 1510 is the new, flexible addition to the Rollover range. Comprising all the essential qualities of the existing line of Flatbed Applicators, this unit targets print operators and sign makers who require a smaller work space for finishing and mounting.
The Rollover Flexi represents our well known high level of quality, craftmanship and durability. Having no overhead gantry above the roller, the access to media and substrates while working is superior.
Features
One Button Operation
Ergonomic handles for roller operation
Rounded console top - no sharp edges
Free view to roller
Unobstructed access to the roller
Reversible extra brackets for application tape
5mm Self-healing cutting mat
Illuminated glass bed
Wheels
5 Year Warranty
The innovative Rollover Flatbed Applicator simply offers a better way of solving the daily challenges of the sign making industry. The excellent functionality is powered by the idea of facilitating and streamlining the multiple tasks encountered in the daily work of signmakers. Regardless of media type such as self-adhesive foil applications, road signs, glass application, banners etc. up to 90mm in thickness, the Rollover will ensure a perfect result at a minimum of time.
Optimal ergonomic work positions have been the basis for the design. Being able to comfortably operate the laminator with one hand whilst having free access to roller, media and tabletop, results in smooth and effective handling. We can guarantee that the operator will not miss the climbing and knee-bending… Perfectly flat application without bubbles or creases is obtained in a minimum of time, and waste is minimised. Illuminated glass tabletop and special cutting mat will improve accuracy and control in operation, and also make the Rollover a perfect work place for many other tasks of the trade.
The Flexi Model arrives fully assembled, but is constructed for convenient & quick dismantling in 3 main sections: • The sliding arms/roller gantry • The glass bed and supporting frame • The leg section
These elements can be individually transported into premises having difficult access. This is done either manually or by using the specially developed transport tool.
Specification
Glass Bed Size
152 x 106cm
Roller Working Area
131 x 106cm
Working area of roller
155 x 306
Roller diameter
115mm
Roller Length
106cm
Approx. weight in kg
165kg
Illumination, LED
45W
Max.thickness of sign substrate in mm
70 mm
Power supply
230V/50Hz/24V – 120V/60Hz/24V
Overview
Model Options
1) Rollover Flexi 1510 Flatbed Applicator
The Rollover Flexi 1510 is the new, flexible addition to the Rollover range. Comprising all the essential qualities of the existing line of Flatbed Applicators, this unit targets print operators and sign makers who require a smaller work space for finishing and mounting.
The Rollover Flexi represents our well known high level of quality, craftmanship and durability. Having no overhead gantry above the roller, the access to media and substrates while working is superior.
Features
One Button Operation
Ergonomic handles for roller operation
Rounded console top - no sharp edges
Free view to roller
Unobstructed access to the roller
Reversible extra brackets for application tape
5mm Self-healing cutting mat
Illuminated glass bed
Wheels
5 Year Warranty
The innovative Rollover Flatbed Applicator simply offers a better way of solving the daily challenges of the sign making industry. The excellent functionality is powered by the idea of facilitating and streamlining the multiple tasks encountered in the daily work of signmakers. Regardless of media type such as self-adhesive foil applications, road signs, glass application, banners etc. up to 90mm in thickness, the Rollover will ensure a perfect result at a minimum of time.
Optimal ergonomic work positions have been the basis for the design. Being able to comfortably operate the laminator with one hand whilst having free access to roller, media and tabletop, results in smooth and effective handling. We can guarantee that the operator will not miss the climbing and knee-bending… Perfectly flat application without bubbles or creases is obtained in a minimum of time, and waste is minimised. Illuminated glass tabletop and special cutting mat will improve accuracy and control in operation, and also make the Rollover a perfect work place for many other tasks of the trade.
The Flexi Model arrives fully assembled, but is constructed for convenient & quick dismantling in 3 main sections: • The sliding arms/roller gantry • The glass bed and supporting frame • The leg section
These elements can be individually transported into premises having difficult access. This is done either manually or by using the specially developed transport tool.
